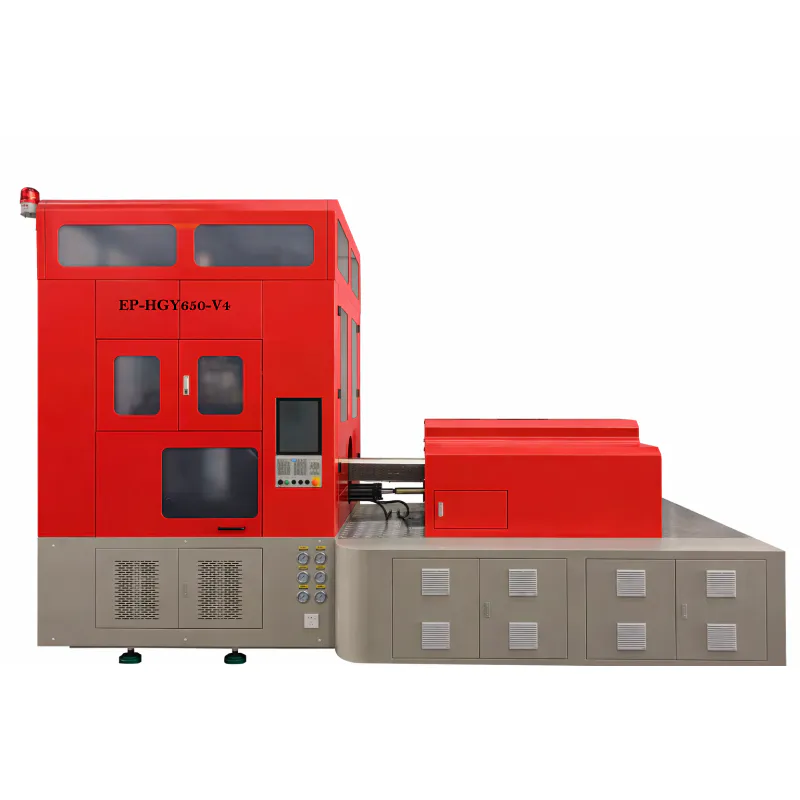

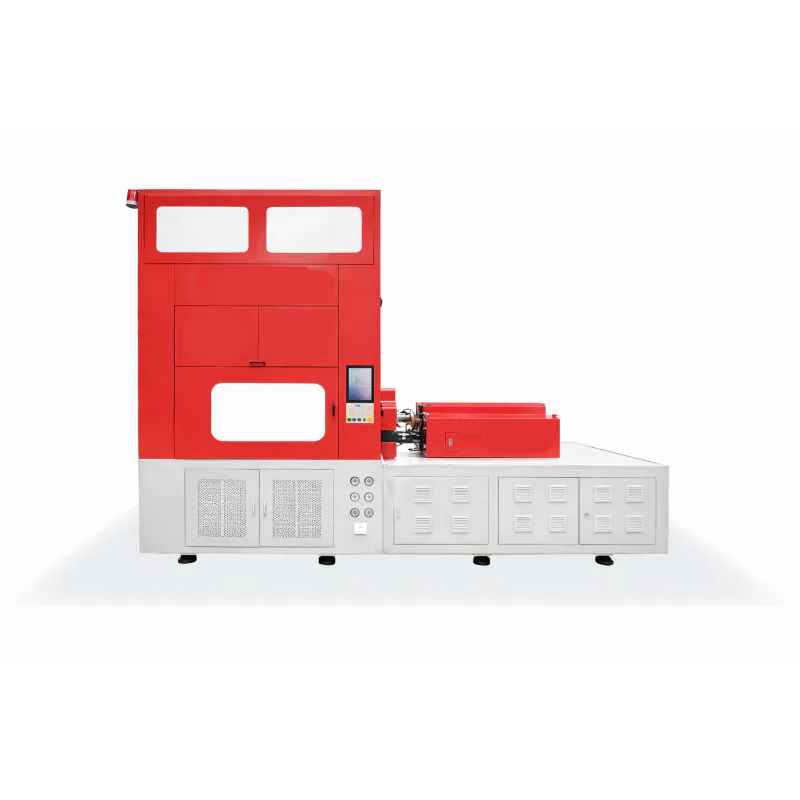

EP-HGY650-V4 injection stretch blow molding machine | 4 station

2. Material Versatility and Processing Capabilities of the Injection Stretch Blow Molding Machine

3. Revolutionizing Large Volume Production with One-Step Technology

The injection stretch blow molding process integrated within the HGY650-V4 is a closed-loop system designed for maximum thermal efficiency. Unlike the two-step method which requires reheating cold preforms, this One-step injection stretch blow molding machine utilizes the residual heat from the injection stage to perform stretching and blowing. This not only reduces energy consumption by up to 40% but also prevents surface micro-scratches and dust accumulation, which are critical for the aesthetics of high-end cosmetic or food-grade containers. For Colombian enterprises looking to optimize their cost-per-unit, the injection stretch blow moulding machine price-to-performance ratio is unmatched, especially when competing against western alternatives. The four-station design—Injection, Pre-conditioning/Tail-cutting, Stretch Blowing, and Take-out—ensures that each stage is perfectly timed to the material's specific heat profile, resulting in superior wall thickness distribution and crystalline transparency.

As a new injection stretch blow moulding machine, the V4 series incorporates the latest in servo-hydraulic hybrid systems. This allows for extremely silent operation (crucial for modern urban factories) and ultra-precise pressure control during the critical stretch-blow phase. Whether you are producing 5-gallon water carboys or 20L chemical drums, the machine's ability to handle complex geometries while maintaining strict neck tolerance is a testament to its engineering excellence. It is widely recognized by injection stretch blow molding machine suppliers as a robust replacement for legacy systems, offering a replacement of asb and aoki standard performance with modernized control interfaces and lower maintenance overhead.

4. Engineering Dynamics: The 4-Station Superiority

Understanding the injection stretch blow molding process is vital for optimizing production yields. In the first station, the high-precision injection stretch blow mold creates a preform with perfect neck finishing. The second station is where the "magic" happens—thermal conditioning. Here, the preform's temperature is balanced to ensure that when it reaches the third station, the biaxial stretching is uniform. Station three employs heavy-duty stretch rods and high-pressure air (up to 3.5 Mpa) to expand the material into the final injection stretch blow molding products. Finally, station four automatically ejects the bottles onto a conveyor, ready for labeling and filling. This white injection stretch blow moulding machine configuration is highly favored for its sanitary advantages, as the bottles are never touched by human hands or exposed to external contaminants until they are sealed.

For operators in Colombia, the intuitive HMI allows for real-time monitoring of Injection stretch blow molding video feeds and sensor data. This transparency in the injection stretch blow molding machines operation allows for immediate micro-adjustments to screw speeds or blowing pressures, drastically reducing the "scrap rate" common in two-step processes. High-volume manufacturers will appreciate the 28-ton solid frame which dampens vibration, extending the life of the asb injection molding machine compatible molds and ensuring that high-speed cycles do not compromise the integrity of the bottle’s base or neck.

6. Manufacturing Excellence & Global Support

As a professional Injection Stretch Blow Molding Machine manufacturers Our state-of-the-art facility integrates R&D, precision machining, and rigorous testing to ensure every machine meets international standards. By using top-tier components from brands like Yaskawa and Parker, we ensure longevity and reliability.
Developed specialized blow molding machines for the packaging of various materials (PET/PETG/PC/PCTG/PP), including cosmetics, water, oil, beverages, food, pharmaceuticals, and baby products. Especially in high-end cosmetics, food, and pharmaceutical specialized machines, we have consistently maintained a leading position in the industry.

Workshop

8. Integrated Solutions: One-Stop Supply Chain

To further enhance your factory's operational efficiency, we offer full system compatibility with auxiliary industrial components. We also manufacture professional Gearboxes designed for heavy-duty industrial applications, ensuring consistent power transmission throughout your facility. Our one-stop supply advantage means all systems are synchronized for maximum durability and minimal downtime, providing a unified technological ecosystem for your plastic manufacturing needs.
